uv glass printer

Ricoh G5 UV printer U-2513

Full steel structure

Ricoh G5 industry print heads

High resolution

inquiry now
Home /

Ricoh G5 UV Printer

/Ricoh G5 UV printer U-2513

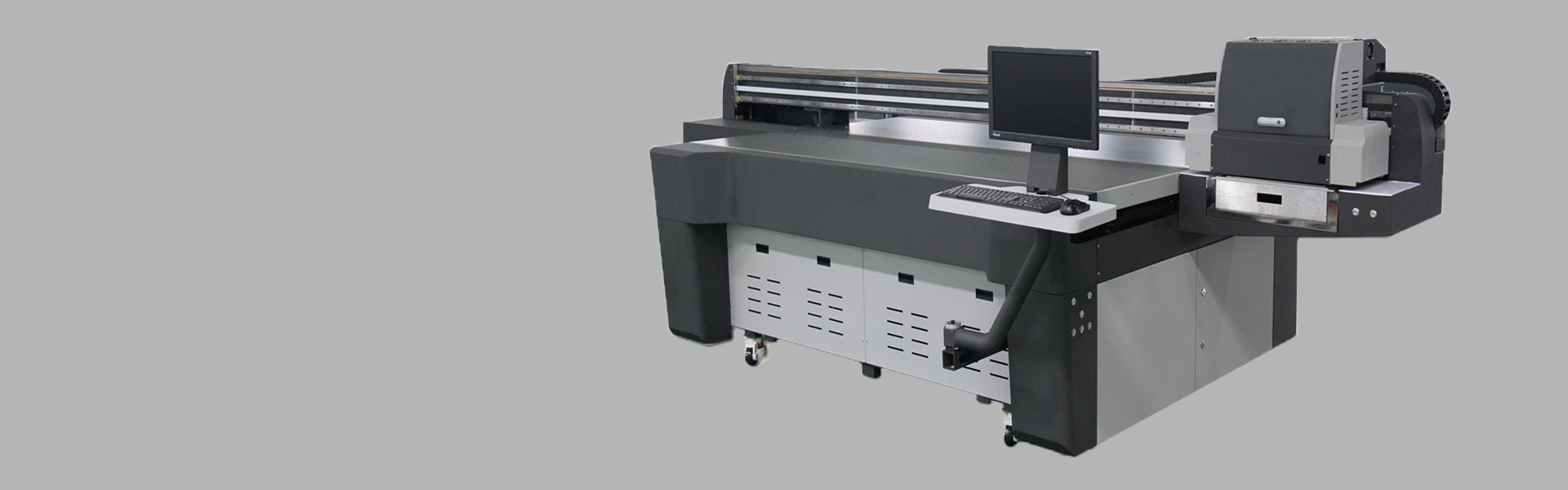

U-1325 UV flatbed printer
130*250cm printing size is suitable for most of jobs you need to do,
 installed with Ricoh G5 industry print heads



Fuji/Panasonic servo motor,

make sure of long lasting working life,

and high quality printing

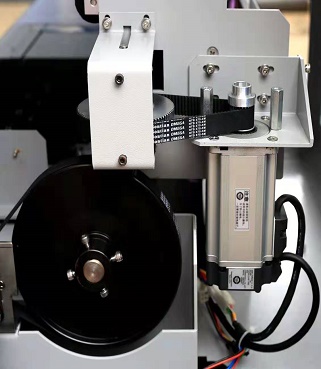

Fuji/Panasonic servo motor

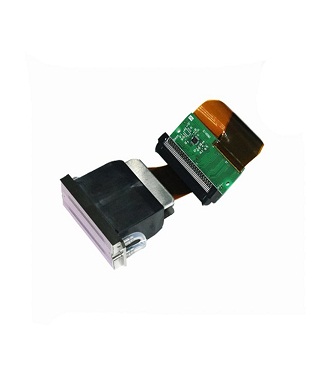

Ricoh G5 print heads

Japanese original Ricoh G5 print heads

ensure high quality printing and long working life

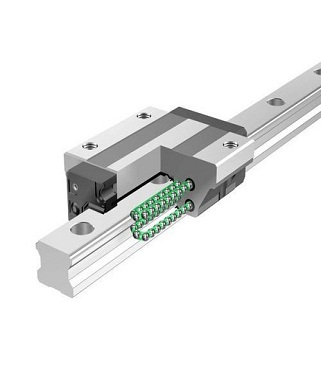

THK / Taiwan Hiwin Guide rail

High rigidity high bearing capacity,Smooth operation,no noise,low friction,famous brand in printing industry.

Long life span American 3M belt.

THK / Taiwan Hiwin Guide rail


CISS with Ink shortage alarm

CISS with Ink shortage alarm

Continuous ink supply system with ink s

Technical parameters


Print Head Quantity

RICOH GEN5(2-9)Pcs Optional Konica1024i(4-8)PCS Optional

Printing Width

2.4mX1.2m

Printing Thickness

1mm-120mm

Printing speed

Printing Mode

One Group

Two Groups

Three Groups

RICOH GEN5

Production Mode

25/h

50/h

75/h

Standard Mode

15/h

30/h

45/h

High Resolution Mode

10/h

20/h

30/h

KONICA 1024i

Production Mode

30/h

60/h

N/A

Standard Mode

20/h

40/h

N/A

High Resolution Mode

16/h

32/h

N/A

Lamp

LED UV Lamp

Ink

UV Ink CMYK.LC.LM.White.Vamish

Media Type

All advertising,decoration materials,metal Plate,Glasses,Wooden Board,Textile,Leather,Vinyl,Mobile Covers etc

Image Type

TIFF / JPG / EPS / PDF

RIP Software

Photoprint / ONYX Maintop (Standard) / Photoprint (Options) ONYX

Computer Configuration

System:Windows 7/8/10 64bits(Professional/Version)CPU:≥Inter i5 RAM:8GB Hard Disk:SATA 500G Hard Disk Format:NTFS CD Rom:DVD Recordable Space for Disk C:100GB at least

Power Supply

AC220V,50HZ±10%,UPS is required

Operation Environment

Temperature 20~30℃ Humidity60~70%

Power

4500W

G./W./N.W.

1700kg/1500kg

Packing Siza/App Siza

L/W/H &4530mmX2230mmX1730mm/4350mmX1920mmX950mm


Applications

Advertising, promotion products, gifts making, craft printing, decoration, phone case, ceramic, wood, etc.


uv glass printer



Wood Printing Machine

Glass Metal

Ceramic tiles

Glazed tiles
Wood Mirror












Plywood

Laminated chipboard

Chipboard tiles Fibreboard Medium-density fibreboard PVC tiles












Self-adhesive vinyl Paper Blueback tiles Banner Canvas Composite materials












Composite panel Lenticular plastic Murals Armstrong cellings Flexible stone

Leather,

leatherette
