70cm Series Sublimation

XP600 printing heads

1440dpi high resolution

70cm printing wide

inquiry now
Home /

One-Stop Solution For Sublimation

/70cm Series Sublimation

Equiped withe XP600 print head, high resolution and steady working
70cm printing size, suit for small shop and DIY

sublimation printers for t shirts, mug, cap, shoes, plates etc.
Less investment and big return

Model

XP600

Print head

XP600

Number of printhead (PC)

1

Maximum print width(mm)

70cm

Color

CMYK

Compatible ink

Eco-solvent ink/ Water-based ink/ Sublimation ink etc.

Eco-solvent

Printable PU/PVC

Sublimation

Sublimation paper

Special

Wallpaper/Canvas/Chines art paper/Mesh

Printing resolution(dpi)

1440dpi

Cleaning of printhead

Automatic

Heating system

 Front/Back

Infrared

Optional

Infrared  heating

Fan/Auto media take-up system/Platform suction control

Equipped

Interface

Net cable

Wording environment(℃)

15-30

Relative humidity(%)

40-60

Speed

Draft mode

18/h

Production

15/h

Quality mode

13/h

RIP software

Maintop/ Photo Print

Operation system

WinXP/Win7

Voltage

AC220V/110V 50-60HZ

Power(w)

600

Package(mm

2350*730*650

Weight(kg)

150±5%

Printer size(mm)

2200*730*1260

Printer weight(kg)

110±5%

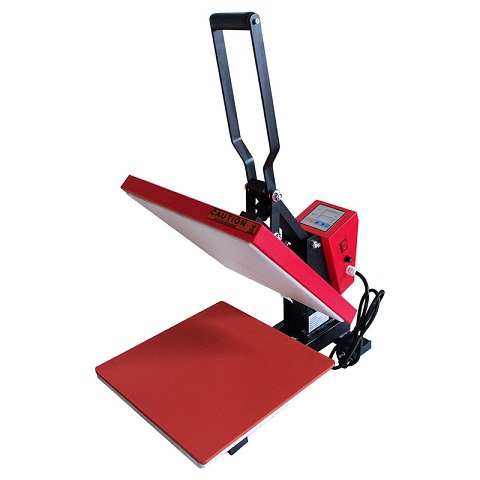

Model No

H-004

Machine

Aluminum heating plate,Anti-scald protecting cover,strong springs,high pressure

Name

Europe Type High Pressure Heat Press Machine

Controller

Digital panel

Voltage

100V/220V

Power

1800W

2200W

2800W

Time Range

0-999sec

Max.temp

399

Printing Area

38*38CM

40*50CM

40*60CM

Printing Thickness

Up to 70mm

Gross Weight

23kg

33kg

35kg

Package Size

725*440*420mm

800*480*450mm

725*680*410mm

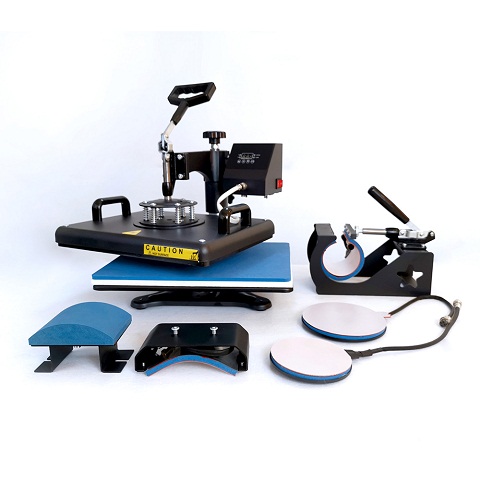

Model No

XY-008(4in1/5in1/6in1/8in1)

Machine

 Multi-function,Swing-away,Aluminum heating plate,Anti-scald protecting cover,Strong springs

Name

 Combo heat press machine

Controller

digital panel

Voltage

110V/220V

Power

1000W

1800W

Time Range

0-999sec

Max.temp

399

Printing Area

29*38CM

38*38CM

Printing Thickness

Up to 70mm

Gross Weight

32kg

35kg

Package Size

50.5*47*41.5cm

59*47*48cm

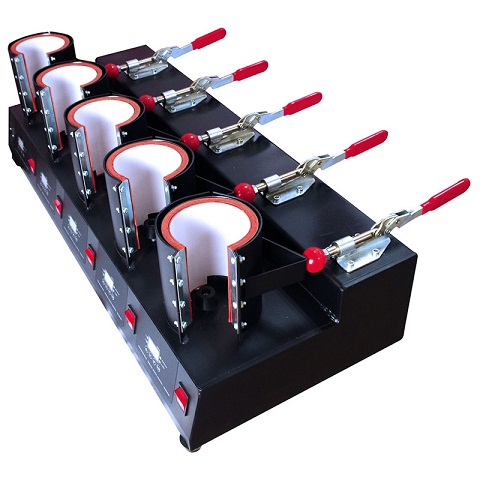

Model No

H-012E

Machine Type

Digital panel,High quality mug heater,Adjustable pressure,5 mugs in one time

Name

Manual High Pressure Heat Press Machine

Controller

Digital panel

Voltage

110V/220V

Power

1350W

Time Range

0-999sec

Max.temp

399

Gross Weight

30kg

Package Size

86.5*37.5*29.5cm

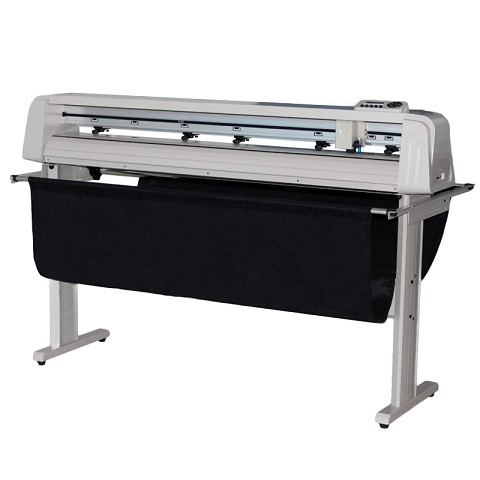

Item NO.

C720I

C1350I

Max media width

720mm

1400mm

Max cutting width

630mm

1260mm

Accuracy

+/-0,01m

+/-0,01m

Connectors

USB/RS-232

USB/RS-232

Drive

Stepper

Stepper

Power consumption

<100w

<100w

Ambient temperature

+5℃-+35℃

+5℃-+35℃

Meas

103x35x49cm

171x35x49cm

G.W/N.W

27.8/25KG

42/35KG
