180cm printing wide
180cm printing wide

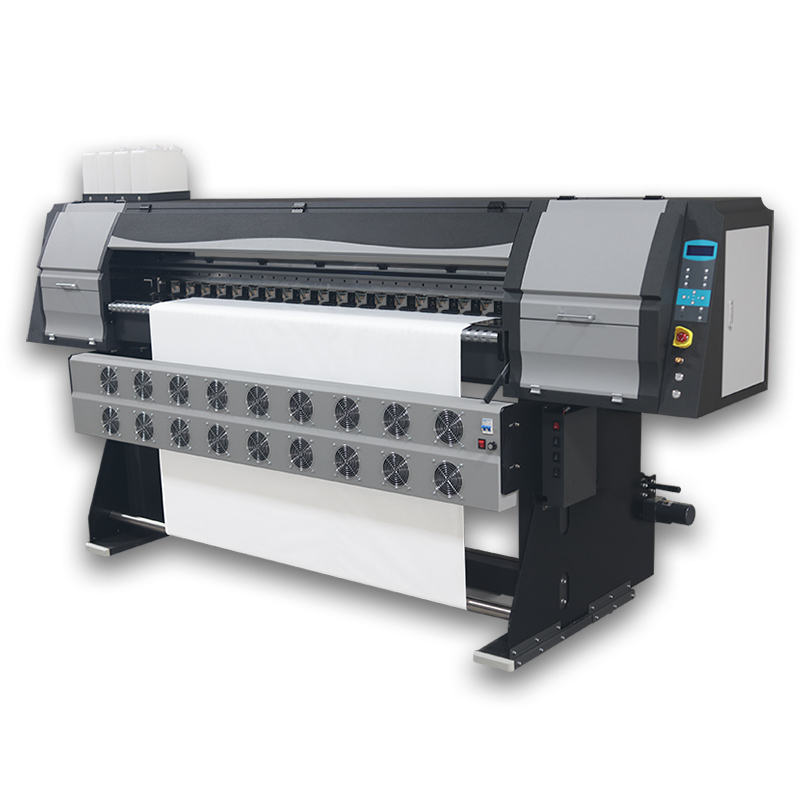

Professional designed wide format sublimation printer
Industrial designed feeding & take up system
Up to 1000m printing without stop,reduce labor costs and increase efficiency
4720 print heads, high resolution & steady working
|
|
|||||
|
Print Head Quantily |
4720 3 Pcs |
||||
|
Printing width |
1.82m * (Unlimited Length) |
||||
|
Printing Thickness |
≤5mm |
||||
|
Printing Speed |
Printing Mode |
Two heads |
|||
|
4720 |
2pass |
120㎡/h |
|||
|
3pass |
90㎡/h |
||||
|
4pass |
65㎡/h |
||||
|
Ink |
Eco-solvent ink/ Water based ink/ Sublimation Ink C·M·Y·K |
||||
|
Media Type |
Textile materials Digital transfer paper | ||||
|
Image Format |
TIFF/JPG/EPS/PDF |
||||
|
RIP Software |
Maintop(Standard)/Photoprint(Optional)/WASATCH |
||||
|
Computer Configuration |
System : windows7/8/10 64bits(Professional/Version)CPU:≥Inter i5 RAM : 8GB Hard Disk : SATA 500G Hard Disk Format : NTFS CD Rom : DVD Recordable Space for Disk C : 100GB at least |
||||
|
Power Supply |
AC 200V,50HZ±10%,UPS is required |
||||
|
Operation Environment |
Temperature 20~30℃Humidity 60~70℃ |
||||
|
Power |
4000W |
||||
|
G.W./N.W. |
460kg/340kg |
||||
|
Packing Size/APP Size |
L/W/H 3300mm*960mm*1050mm/3200mm*860mm*950mm |
||||
|

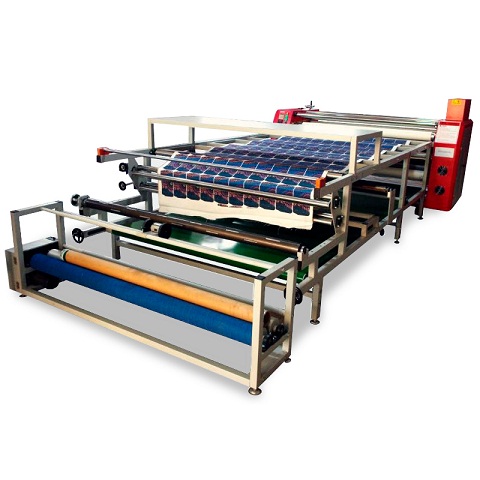

Model |
BC270 |
|
|
Heating Media |
High Temperature Resistance Conducting Oil |
|
|
Vellage |
3-Phase 4Line 380V/220V |
|
|
Heating Pawer |
11kw |
16kw |
|
Diameter ofRoller Drum*Width |
270*1200mm |
270*1700mm |
|
Transter Speed |
About 50-60m/h |
|
|
Temperature |
0-299℃ |
|
|
Heating TUbe Quantity |
9 |
|
|
Transter Width |
1200mm |
1700mm |
|
Blanket Dinension |
1250mm |
1750mm |
|
Bed Dimension |
2.4m |
|
|
Putting Device |
3(Fabric Putting/Sublimation Paper/Putting/Protective Paper Putting) |
|
|
Collecting Device |
2(Finished Sublimation Paper Rewinding/Protective Paper Rewinding) |
|
|
Gross Weight |
800kg |
1000kg |
|
Machine Dimension |
2200*2000*1350mm |
2200*2540*1350mm |
|
Packing Size |
2150*1000*1400mm |
2650*1000*1400mm |

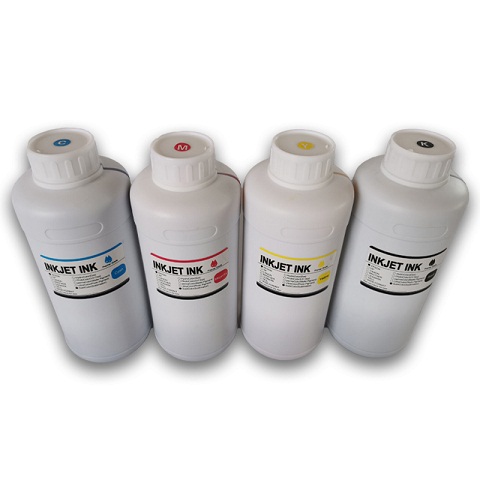

| Sublimation Ink Basic Parameter | |
| Product Name | Sublimation ink |
| Color | Black Cyan Magenta Yellow |
| Product Capacity | 1000ml/bottle 12bottle/box |
| Suitable Printhead | For DX4. DX5.DX7, TFP, 5113, 4720 |
| Viscosity | 3-4cp/25℃ |
| Surface Tensity(mn/m(25℃) | 25±mn/m/25℃ |
| Average Particle Size | <100nm |
| Shelf life | 12month |
