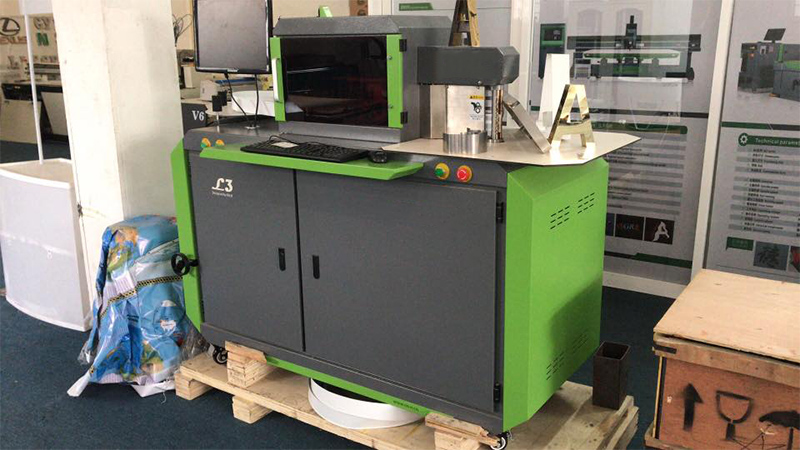

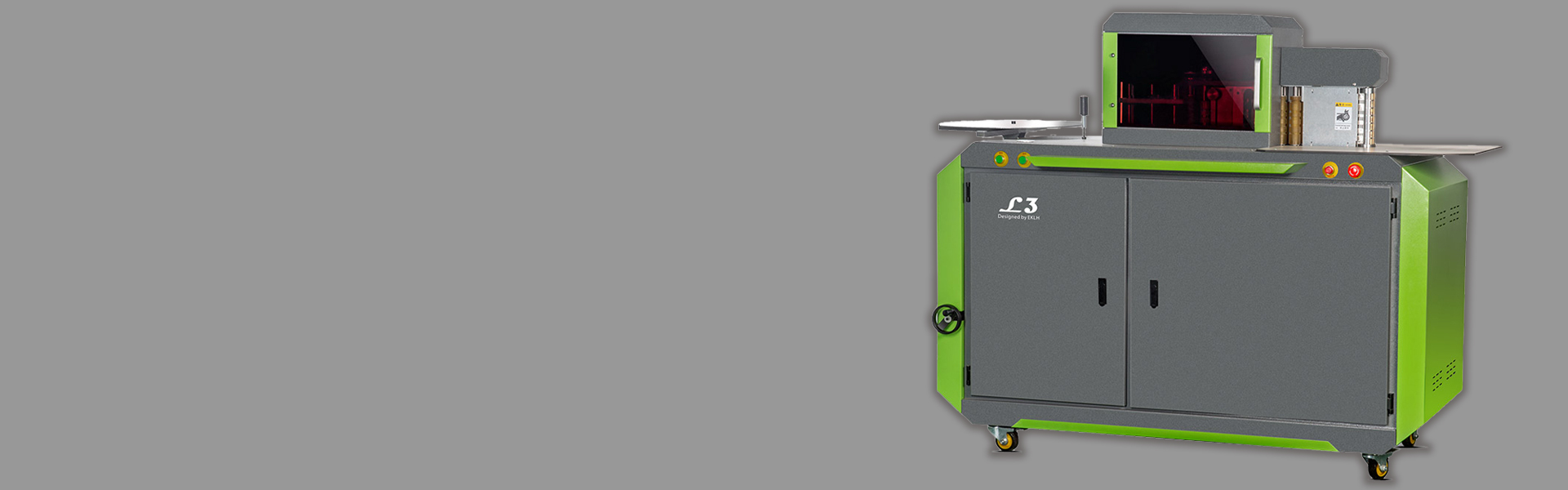

Letter Bending Machine EKLH-L3

Letter Bending Machine EKLH-L3

Automatic straightening, cutting and bending

High precision automatic feeding


inquiry now
Home /

Bending Machine

/Letter Bending Machine EKLH-L3


Channel Bending Machine--bending A B letter, beautiful and easier. A better application of letter in bending and cutting easy operation, cost-effective.



Model

EKLH-L3

Material Thickness

0.4-1mm

Material Width

15-110mm

Groove Degree

45°-135°

Grooving System

    Saw grooving system

Servo Control

3-axis servo control

Support Software

EKLH bending software

Air Pressure

0.3-0.8Mpa

Material Application

Aluminum, Aluminum with fold

Location Precision

R10 ±0.1mm

Machine Power

1500w

Working Voltage

AC220V
