Konica 512i Solvent Printer CK8

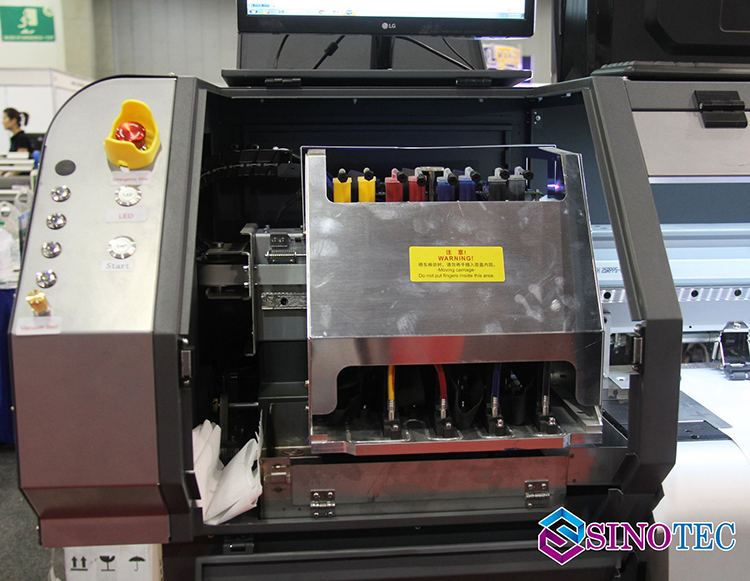

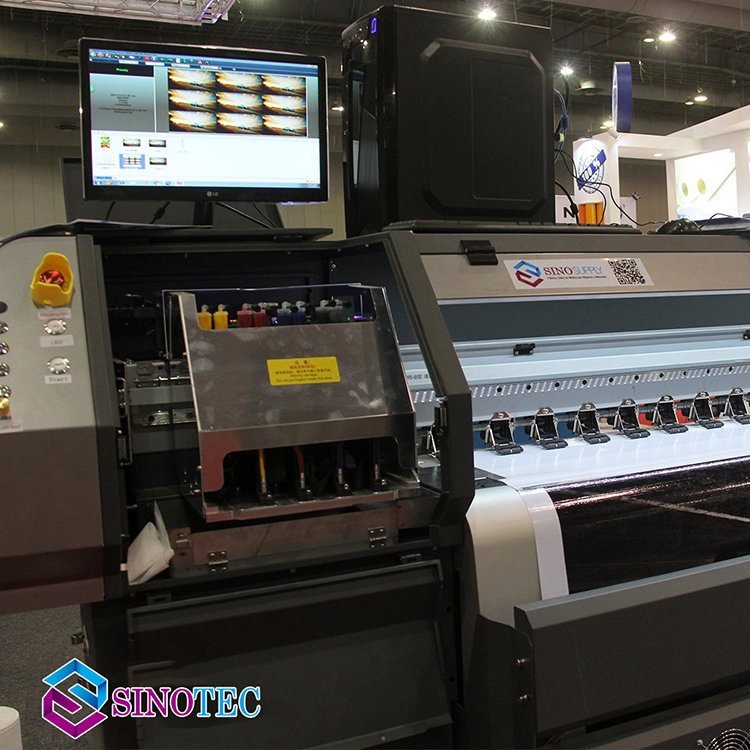

Konica 512i print heads

High resolution & high speed

More affordable

inquiry now
Home /

Eco Solvent/Solvent Printer

/Konica 512i Solvent Printer CK8

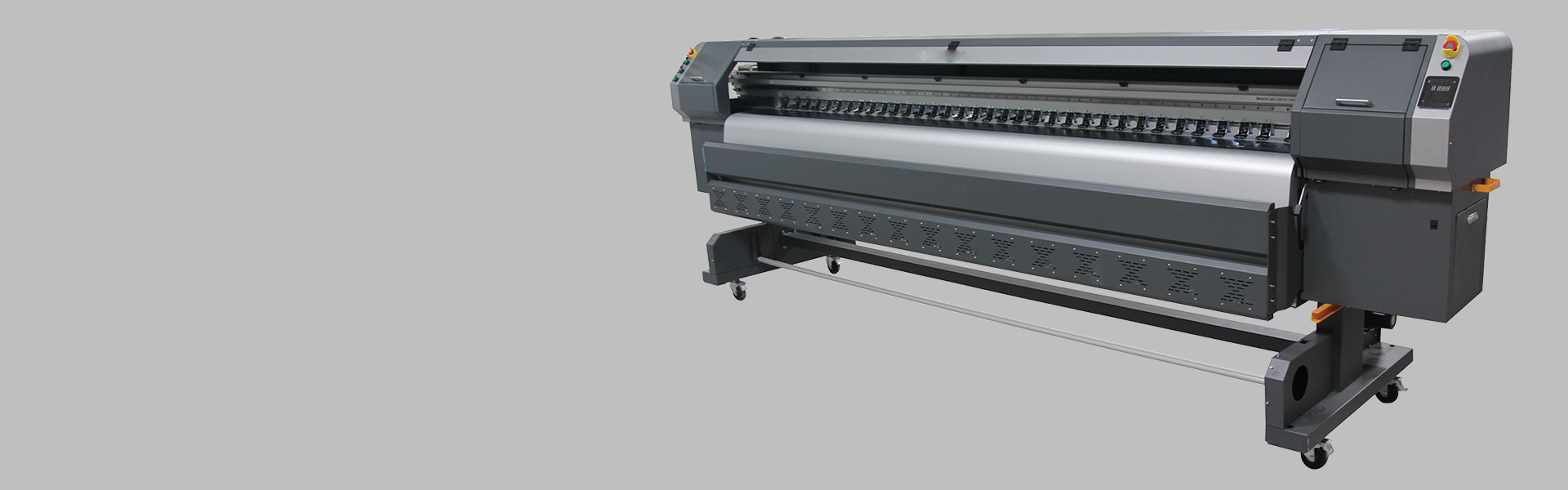

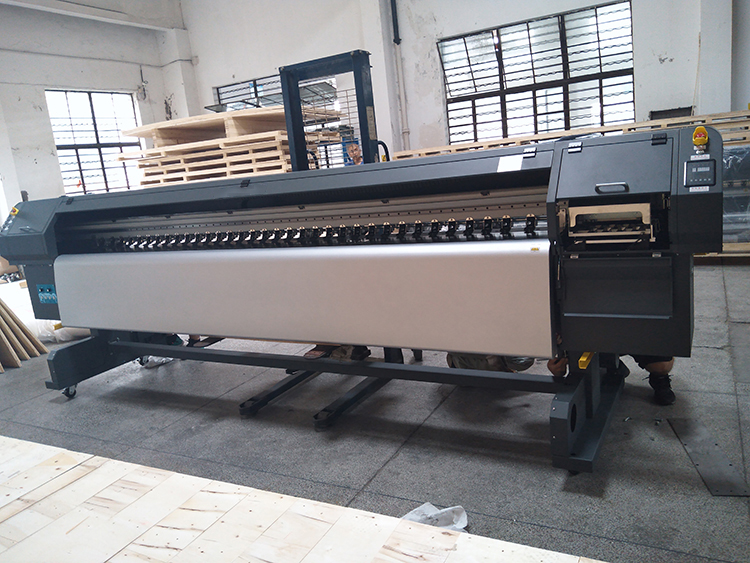

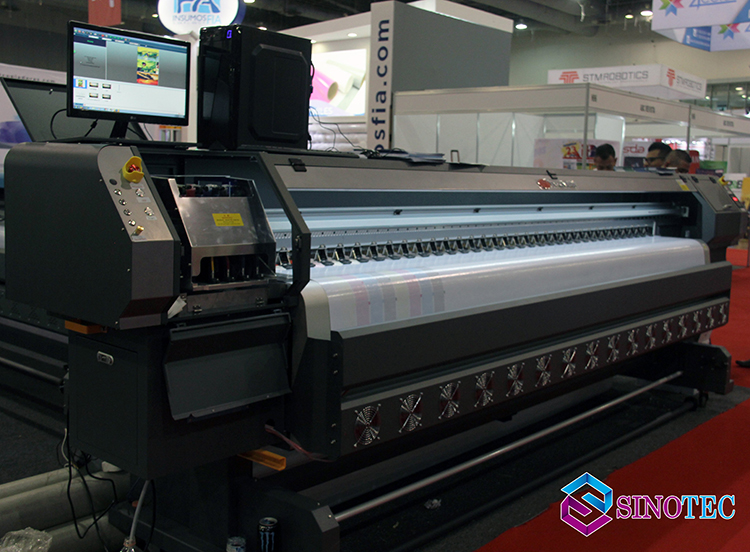

10 feet / 3.2m wide large format printer with konica minolta 512i print head

Konica print heads is one of the most steady printing heads,  and also the printing system is satisfied by clients

 It is not effected by working environment, such as temperature, power supply and humidity.




Technical parameters


Printer parameters

Konica512i Solvent Printer CK8

Printer head

KM512i-30pl-4H/8H

Head height

1-10mm

Printing width

3200mm

Ink

solvent ink

Color

CMYK

Printing material

type

height

automatic feeding

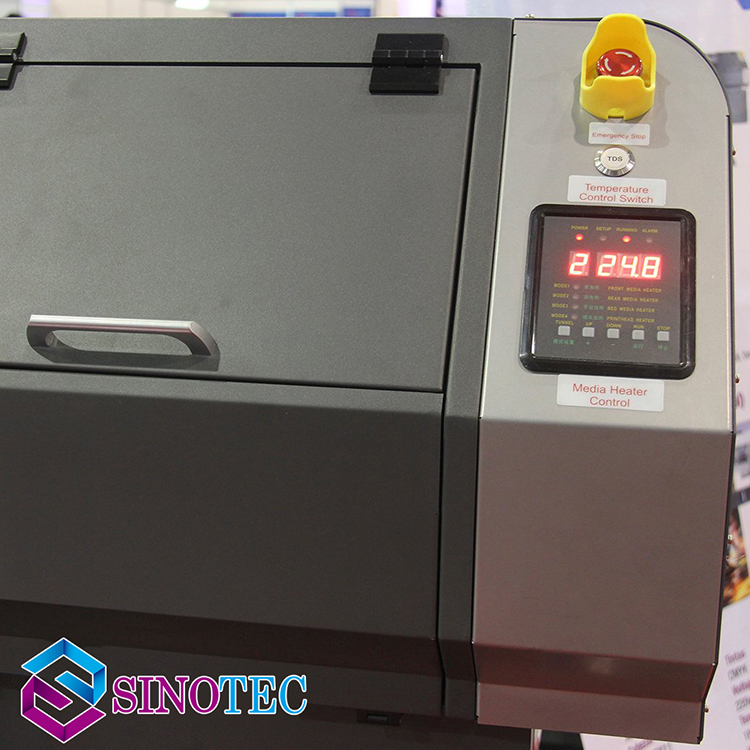

Drying system

PVC Flex/vinyl

1-10mm

yes

Infrared+fan

Ignite Frequency

20kHz

Print speed 8H

2pass

3pass

6pass

8pass

260㎡/h

180㎡/h

90㎡/h

70㎡/h

Resolution

480x360dpi

480x540dpi

720x1080dpi

720x1440dpi

File format

PSD/DWG/HPG/HGL/PS/EPS/JPG/TIF/BMP

RIP Software

PP/Maintop/Ultrprint

Auto-cleaning

yes

Operating environment

temperature20-27°C humidity45-75%CH

Power

AC220/1000W(Print),2000W(Dry)

Operate system

Windows XP/Win7

ComputerConfiguration

Windows XP SP2CPU:Intel quad core i5 memory: KST 4 GBHard disk: WD 500 g hard disk format: NTFS graphics: ATI alone
1 GB of memory drives, DVD drive C disk space: minimum 100 G

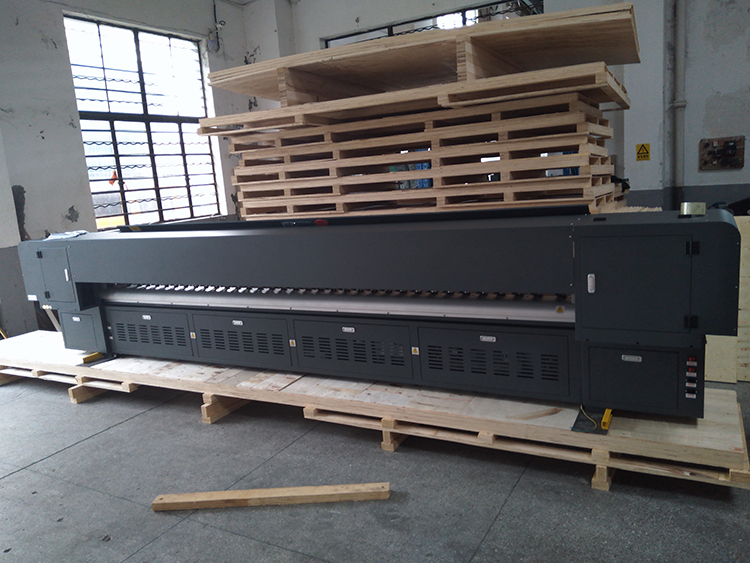

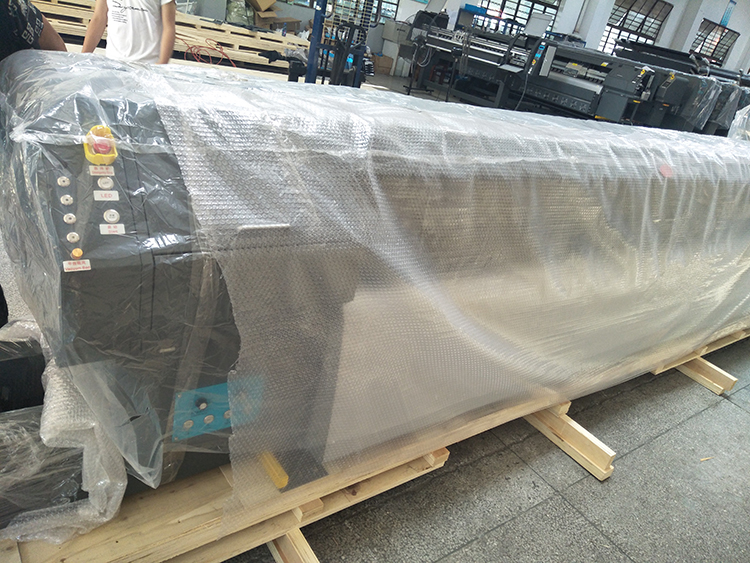

Packing Size/APP Size

L/W/H 5000x1200x1700mm

Weight

950kg




Applications

Outdoor billboards, flex banner, vinyl, sign display, promotions, etc.
